Receiver mode

This mode supports to receive GVIF signal from source equipment and analyze it. Real time measurement of video timing, audio and GVIF dedicated signal can be done to judge if it is compliant to GVIF specifications. Video data capture and save by 1 line or 1 pixel is available as well.

Generator mode

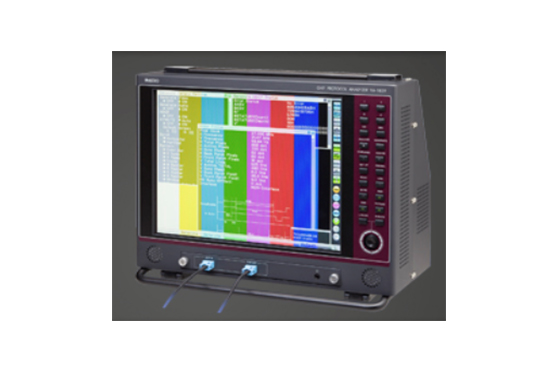

VA-1839 performs as signal generator to output a wide variety of video timing and patterns compliant to GVIF specifications, which help evaluate GVIF sink equipment.

HDCP test
It is suitable to evaluate HDCP contents protection functions, supporting both source and sink equipment.

Data logging
Data of video and audio timing, video data, HDCP status, etc can be saved to USB device
